HVAC-system pumping and control; general purpose pumping; industrial/process pumping and control (water or glycol based)

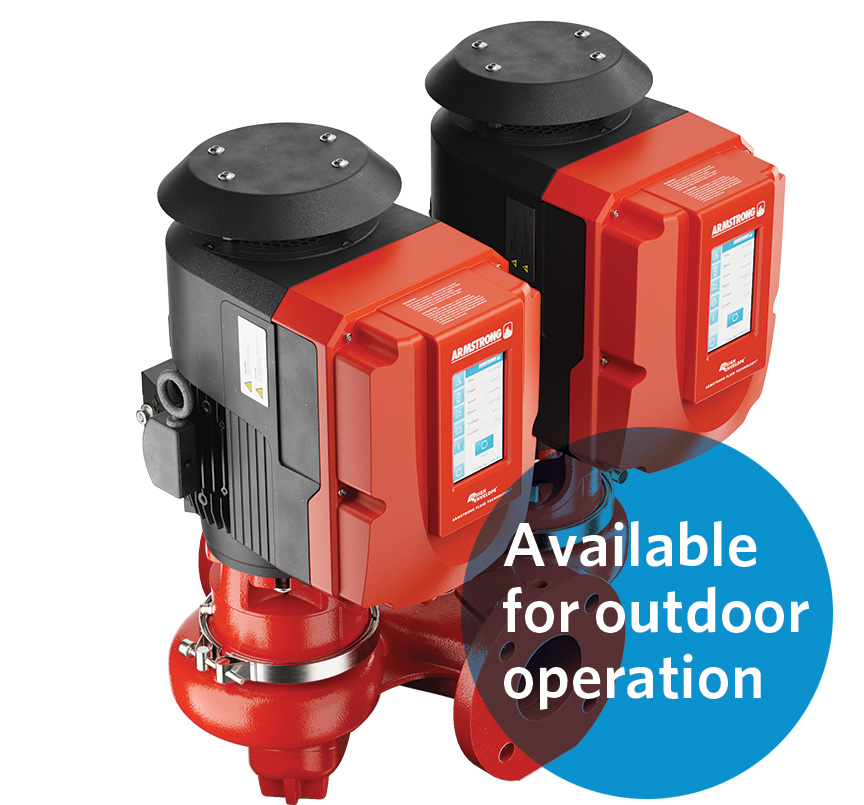

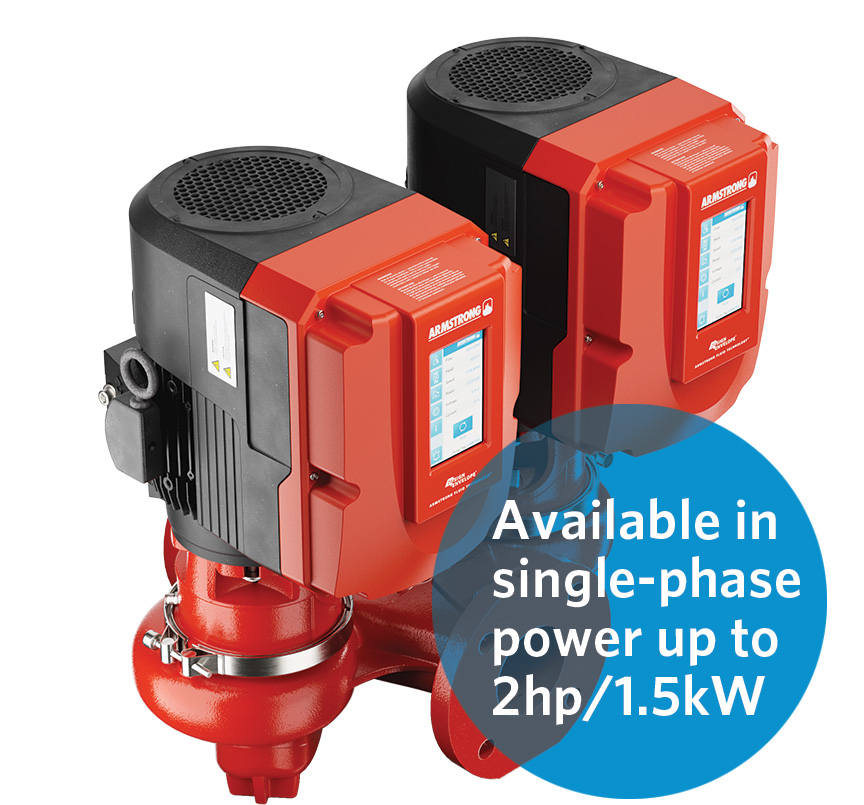

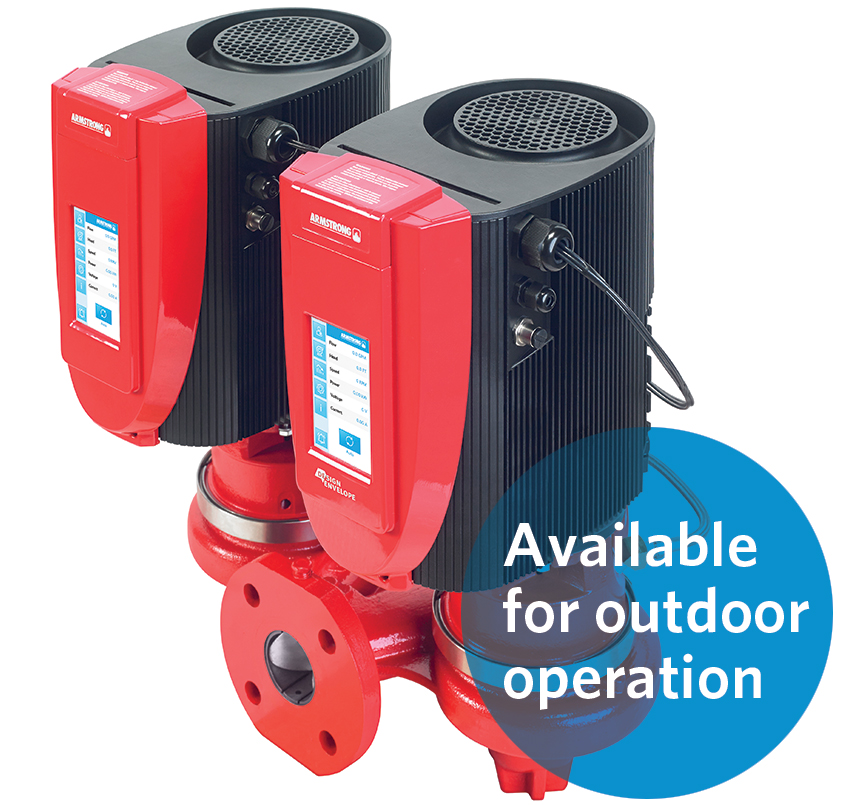

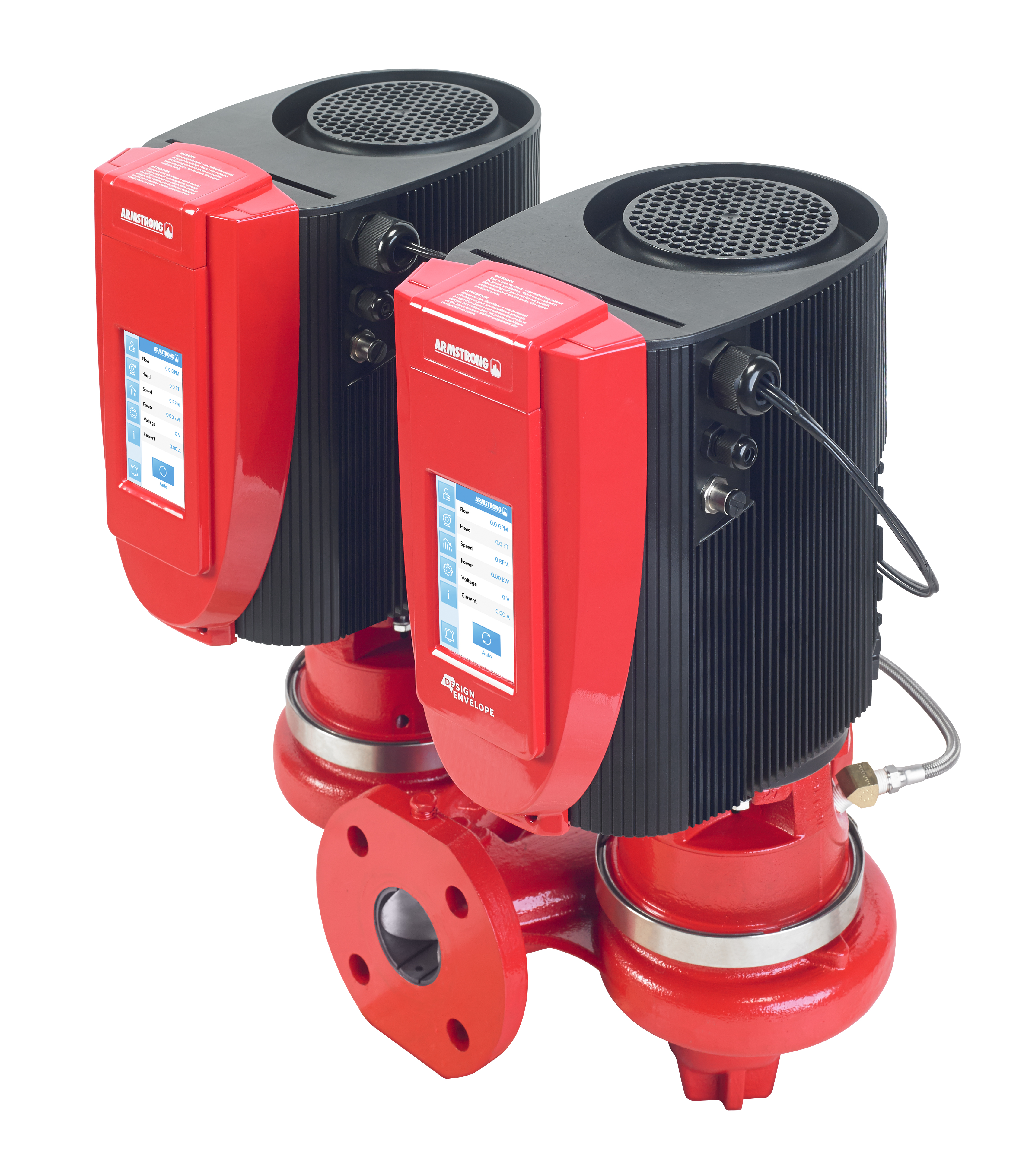

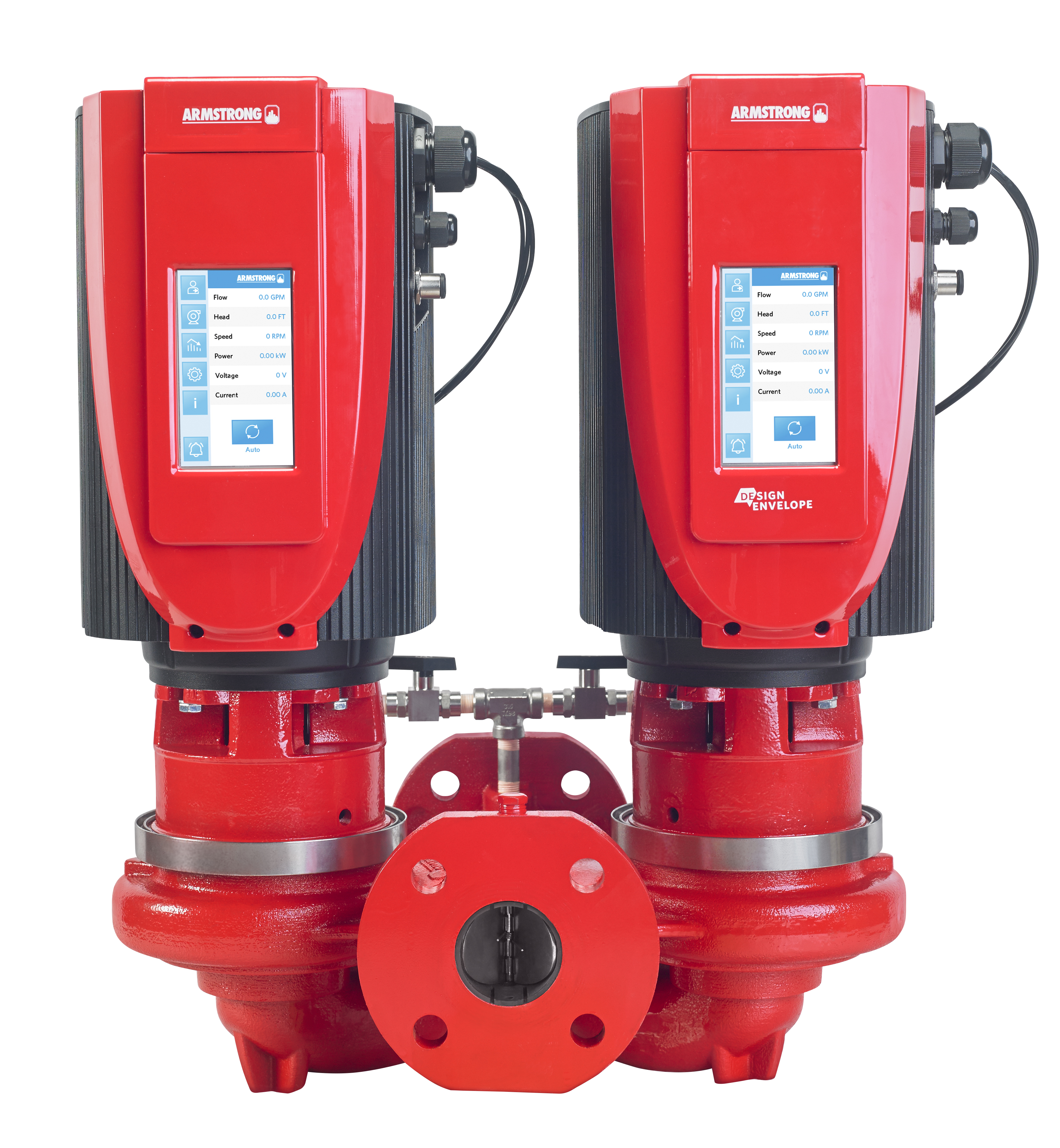

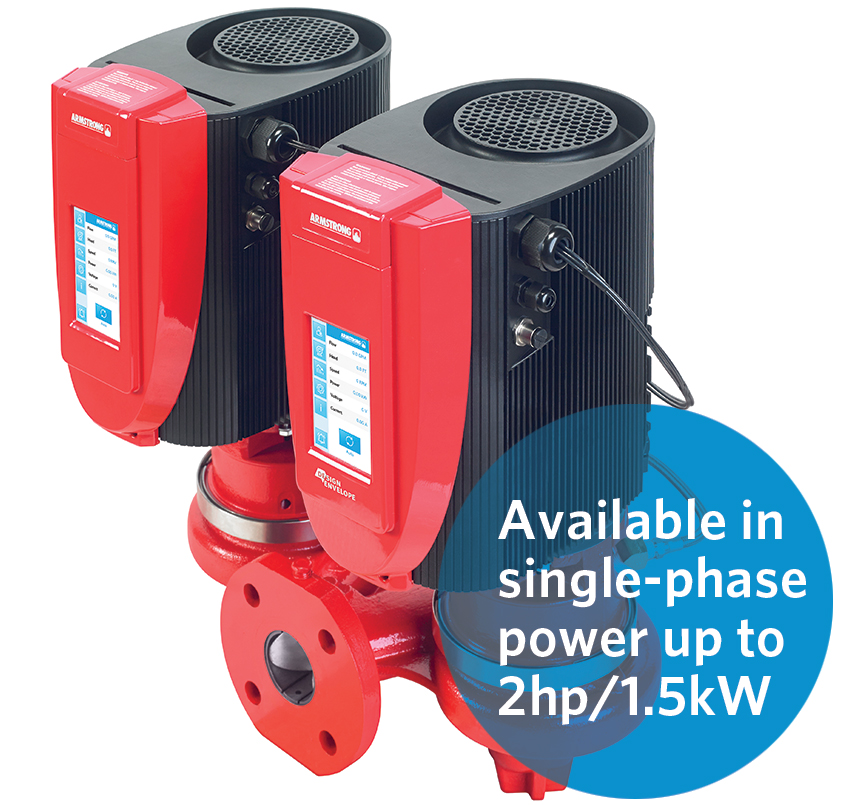

Pipe-mounted 2-pump unit with integrated intelligent controls for space-saving installation, superior energy performance, and parallel-pumping or full redundancy operation. Saves up to 75% in energy over comparable traditional constant speed or variable frequency operated pump installations. Remote services through internet to enhance reliability and sustain optimal performance over life of pumps.
On-board Intelligent Variable Speed controls with Sensorless control. Controls enclosure UL type 12 or UL type 4X for outdoor applications. 1-10hp range standard with iECM motors that exceed IE4 Efficiency IEC 60034-30-1. Network capable for remote performance management services.
Up to 56 L/s (900 USgpm) in parallel flow and 48 m (160 ft) head (composite curves available)
0.75 kW to 7.5 kW (1 hp to 10 hp)
40 mm to 80 mm (1.5" to 3”)
