4300 Vertical In-Line Pumps

Product Image
4300 Vertical In-Line (VIL) pumps

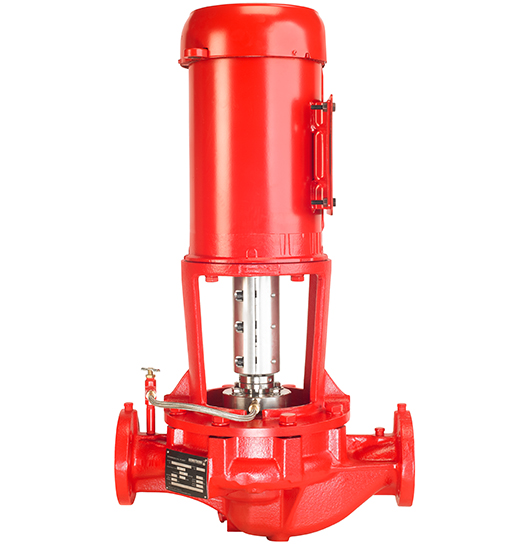

4300 Vertical In-Line (VIL) pump - FrontView

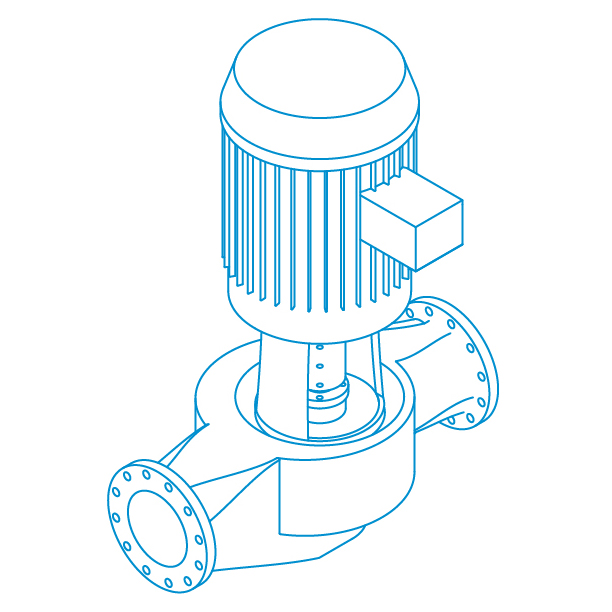

4300 Vertical In-Line (VIL) single pumps

  • Summary
  • Applications

    HVAC-system pumping; light industrial/ process pumping (water or glycol based)

  • Description

    The Armstrong 4300 pipe-mounted pumps are designed for space-saving installation, high operating efficiency, and long service life

  • Materials
    • Cast, ductile iron or bronze casing
    • Cast iron or bronze impeller
  • Configuration

    Outside balanced or inside single spring mechanical seal

  • Performance Range

    Up to 1,800 L/s (28,000 USgpm) flow; up to 150 m (500 ft) head

  • Temperature

    150oC (300oF)

  • Power

    0.75 kW to 900 kW (1 hp to 1250 hp)

  • Size

    40 mm to 500 mm (1.5" to 20”)

Low installed cost

  • Vertical In-line design eliminates the need for inertia bases, housekeeping pads, flex connectors, and field alignment or grouting requirements
  • Vertical In-line design minimizes space and pipe requirements
  • Isolated mechanical seal design with optional sediment filters or separators available to extend seal life in contaminated systems



Icon Calculator

ROI Calculator

Calculate the return on investment, when using this product, in just a few quick minutes.
»

Low energy consumption and operating cost

  • Armstrong 4300 pumps are available with high-efficiency NEMA-premium motors for significant reduction in energy consumption and cost
  • All motors are suitable for inverter-fed service
  • Vertical In-line design minimizes pipe requirements and related friction losses resulting in higher system efficiency
  • Split-coupling allows replacement of mechanical seal without disturbing the pump or motor
  • No lubrication or seal adjustments required
Sustainability

Sustainability

»

Low operating risk

  • Universal replacement seals, bearings, and motors available locally world-wide
  • Optional isolated mechanical seal with sediment filters or separators for extended seal life in contaminated systems
  • Vertical In-Line configuration allows for less disruptive pump service (casing stays in place)
