4030 End Suction Base Mounted Pumps

Product Image
4030 End suction Base mounted pump

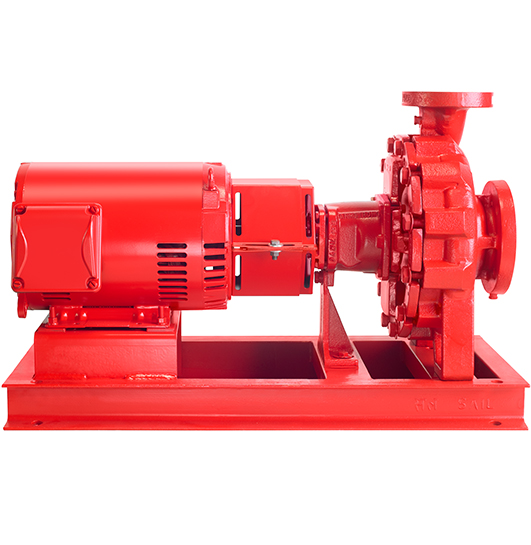

4030 End suction Base mounted pump Sideview

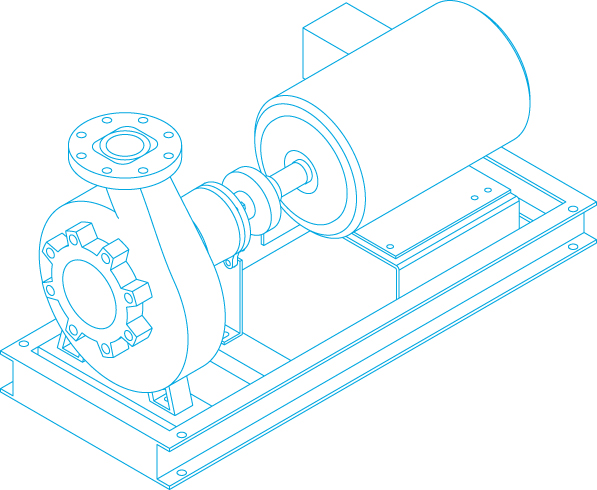

4030 30-30 FrontUP LineDrawing

  • Summary
  • Applications

    HVAC-system pumping; light industrial / process pumping

  • Description

    The Armstrong 4030 horizontal end-suction (HES) pumps are engineered to substantially reduce cost over competitor designs across installation, operation, and lifetime maintenance. High-efficiency NEMA-premium motors ensure low energy consumption and cost.

  • Materials
    • Cast iron, ductile iron, or bronze casing
    • Cast iron or bronze impeller
  • Configuration

    Inside single spring mechanical seal.

  • Performance Range

    Up to 270 L/s (4,300 USgpm) flow; up to 160 m (500 ft) head

  • Temperature

    121oC (250oF)

  • Power

    0.25 kW to 132 kW (0.33 hp to 200 hp)

  • Size

    25 mm to 200 mm (1" to 8")

Low installed cost

Pre-lubricated and sealed deep-groove ball bearings for convenient installation (simply pipe, align, wire and start)

Icon Calculator

ROI Calculator

Calculate the return on investment, when using this product, in just a few quick minutes.
»

Low energy consumption

  • Armstrong 4030 pumps are equipped with high-efficiency motors for significant reduction in energy consumption and cost
  • All motors are suitable for invert-fed service

Low operating and maintenance cost

  • Armstrong 4030 pumps are equipped with high-efficiency motors for significant reduction in energy cost
  • Centreline discharge casing eliminates air binding
  • Sintered silicon carbide mechanical seal seat for longer life
  • Confined casing gasket eliminates blow-up
Icon Calculator

ROI Calculator

Calculate the return on investment, when using this product, in just a few quick minutes.
»

Solution Outline

(PDFs)

4030 End Suction Base Mounted Pumps - brochure

4030 End Suction Base Mounted Pumps - brochure (India)

HE Series motors - brochure

Legacy - Energy Savings - brochure


Submittals

(PDF)

Replacement Parts
